High-End Forging Aluminum Beam for Warp Knitting Machine

ONEREEL is a manufacturer and supplier specializing in the production of series of warp beams for High-End Forging Aluminum Beam for Warp Knitting Machine and narrow fabric machines. It has advanced process equipment and products. Main equipment: 800T forging press, gravity casting machine, 800T D í a casting machine, T6 heat treatment production line, large NCN lathe, hard anodizing technology, with an annual output of 200000 beams. Main testing equipment: spectrometer, dynamic balance testing machine, bending moment testing machine, coating thickness gauge, machine, coating production equipment and all testing equipment are imported from abroad and regions, such as equipment.

Model:ORA-5

Send Inquiry

Product Description

This High-End Forging Aluminum Beam for Warp Knitting Machine is a high-quality product.

ONEREEL ® Warp knitting bundles are used for spinning and filament yarns. Benninger, Karl Mayer, Hakoba, West Point, Suker and other high-speed sectional and traditional warping machines. Available size: flange diameter 800mm. To 1400mm dia. Task width: 1600mm to 2800mm.ONEREEL® has the ability to customize for Warper brand, which is the first in the world.

ONEREEL® High-End Forging Aluminum Beam for Warp Knitting Machine Parameter (Specification)

ltem	Specifications	Size（mm）						Weight
ltem	D*E	B	T	d	w	b	1	Kg
ORA-001	200*165	Φ100					203
ORA-002	254*174	Φ100	15	Φ70.5	14	75	204	4.4
ORA-003	355*317	Φ110	19	Φ70.5	16	78	355	10.6
ORA-004	355*492	Φ110	21.5	Φ70.5	16	78	535	12.5
ORA-005	450*300	Φ150	30	Φ90	16	98	360	22
ORA-006	535*470	Φ200	35	Φ153	20	161	540	35
ORA-007	762*470	Φ300	35	Φ153	20	161	540	85
ORA-008	532*470	Φ200	35	Φ153	20	160	540	52
ORA-009	455*482	Φ200	29	Φ153	20	160	540	44
ORA-010	535*470	Φ200	35	Φ153	20	161	540	38
ORA-011	535*470	Φ200	35	Φ153	20	161	540	36
ORA-012	535*470	Φ235	35	Φ153	20	161	540	44
ORA-013	762*470	Φ300	35	Φ153	20	161	540	85/88
ORA-014	762*470	Φ260	35	Φ153	20	161	540	72
ORA-015	762*470	Φ300	40	Φ153	20	161	540	96
ORA-016	726*982	Φ300	40	Φ153	20	161	1062	120-130
ORA-017	1000*470	Φ300	35	Φ153	20	161	540	130-160
ORA-018	1060*470	Φ300	35	Φ153	20	161	540	130-160
ORA-019	1000*982	Φ300	40	Φ153	20	161	1062	188-215
ORA-020	1060*918	Φ295	75	Φ153	20	167	1068	295

ONEREEL®High-End Forging Aluminum Beam for Warp Knitting Machine Feature and Application

1.Flange：cylinder body: high-strength aluminum alloy material, formed by low-pressure centrifugal forging and heat treatment, has the advantages of high strength and good metal stretchability;

2.Welding: using inert gas argon, high-precision welding by robot automatic welding hands, has the advantages of high tensile strength, no fracture, and no deformation;

3.Surface treatment: hard oxidation treatment to form an oxide film with a thickness of ≥66um, which has the advantages of anti-corrosion, anti-wear and anti-scratch;

4.Detection: Pass the dynamic balance test to ensure that the pan head is concentric and does not shake during warping.

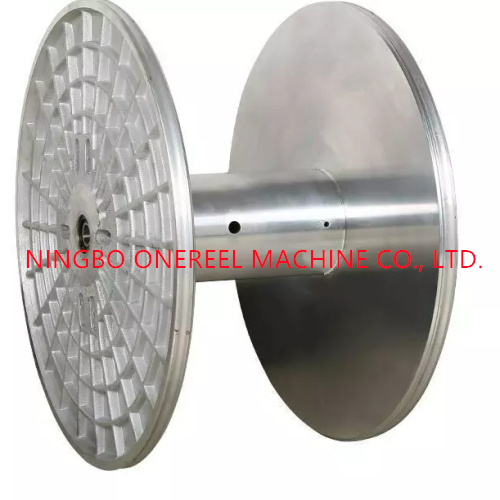

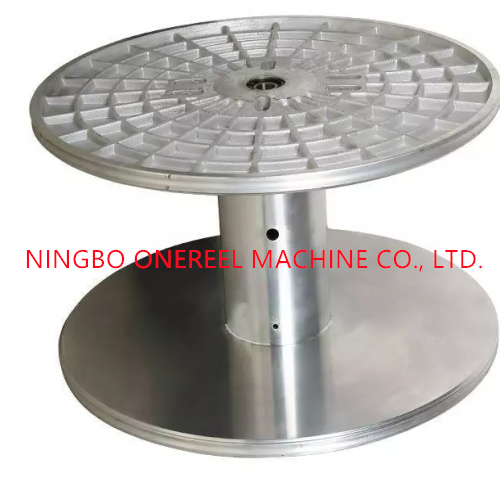

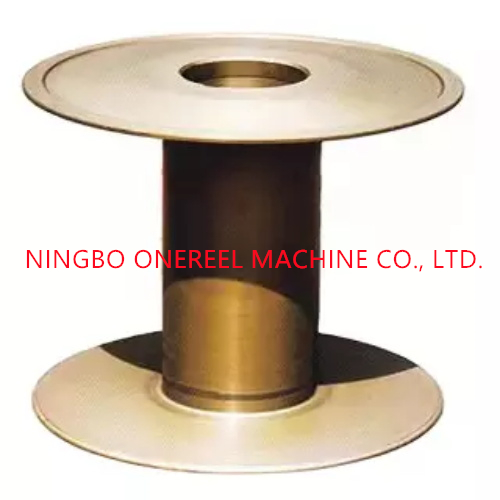

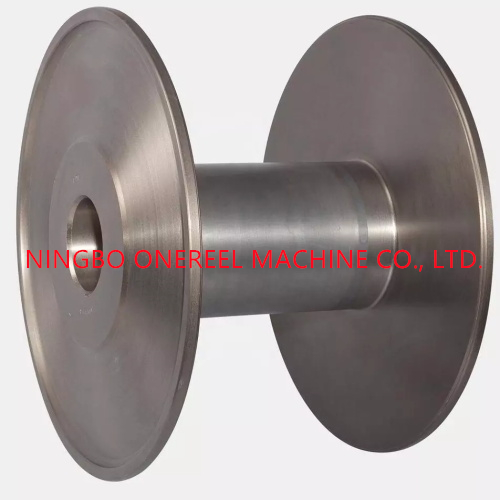

ONEREEL® High-End Forging Aluminum Beam for Warp Knitting Machine Details

ONEREEL ® High-End Forging Aluminum Beam for Warp Knitting Machine is widely used in warp knitting and industrial textiles

ONEREEL ® High-End Forging Aluminum Beam for Warp Knitting Machine is applicable to high-speed segmentation and traditional warping machines for spinning and filament yarns such as Benninger, Karl Mayer, Hakoba, West Point, Sucker, etc. With the support of our exquisite technical expert team from time to time, we have made the best quality warp knitting shafts to meet various requirements of customers. These beams are made of fine aluminum and ordered. These beams can also be customized according to the requirements of buyers.

FAQ

What is your products standardization?
our products strictly comply with ISO9001 and CE standards

Can you can design the spool according to our size?
Yes, we have a professional team of engineers who can complete the manufacture of the spool you provid

How many years have your company made this kind of spool?
we have been making spools more than 20 years

Are you a trading company or a manufacturer?
we are a manufacturer of spool technology and design

How long is your delivery time?
we will deliver the order as soon as we receive it
