Modular Advanced Reel System Reel

ONEREEL is the top Modular Advanced Reel System Reel manufacturer and supplier in China.ONEREEL’s Modular Advanced Reel System (MARS®), the industry's first lightweight cable deployment reel system, is specifically engineered to meet the rigorous demands of fiber optic installations in harsh environments. In contrast to traditional metal reels, MARS features a lightweight, modular design made from impact-resistant polymer, making it easy to transport. It’s perfect for applications where cables need to be deployed and retracted swiftly and stored compactly. MARS also provides a range of deployment options, such as optional frames, backpacks, shipping cases, and cable management platforms, allowing customers to handle diverse applications with a single modular reel and accessories system.

Model:MARS-100

Send Inquiry

Product Description

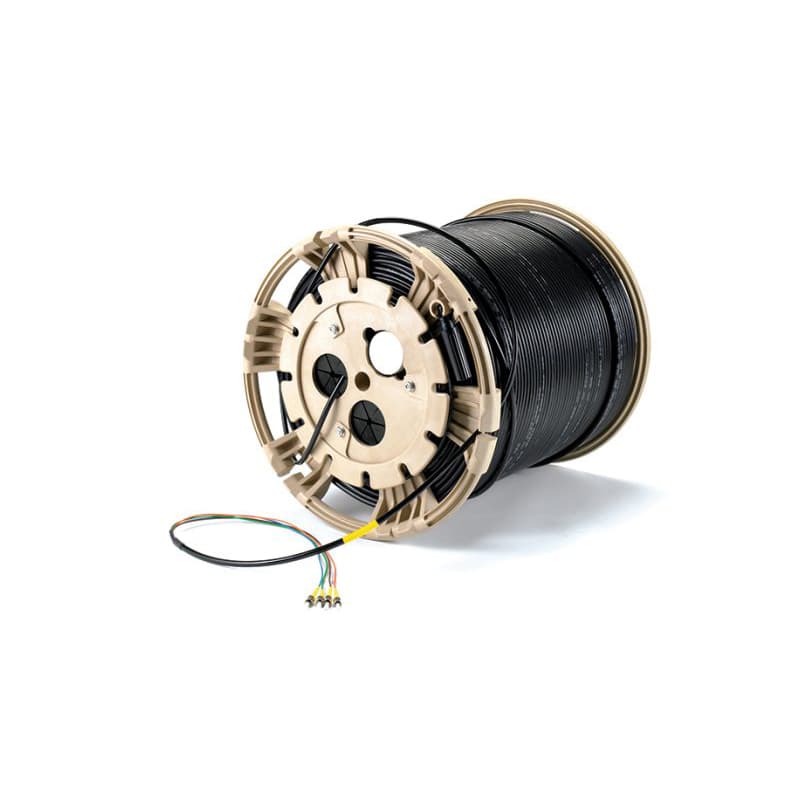

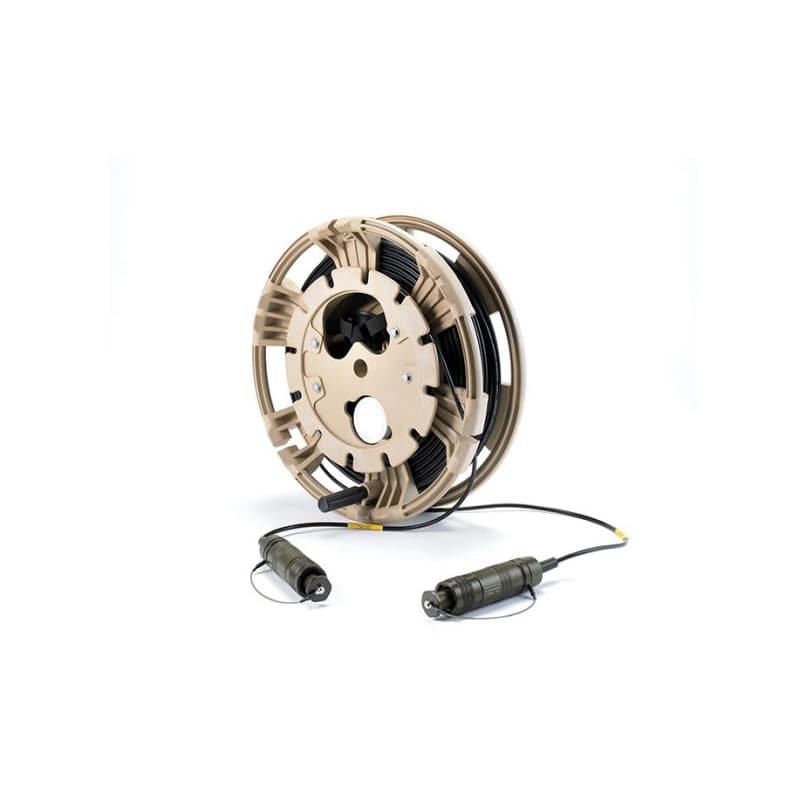

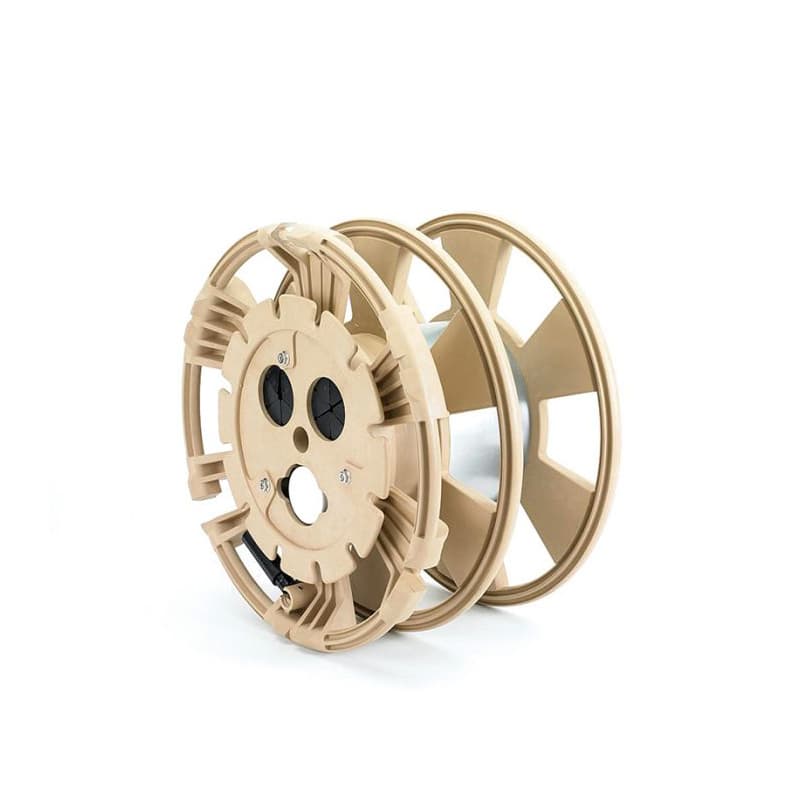

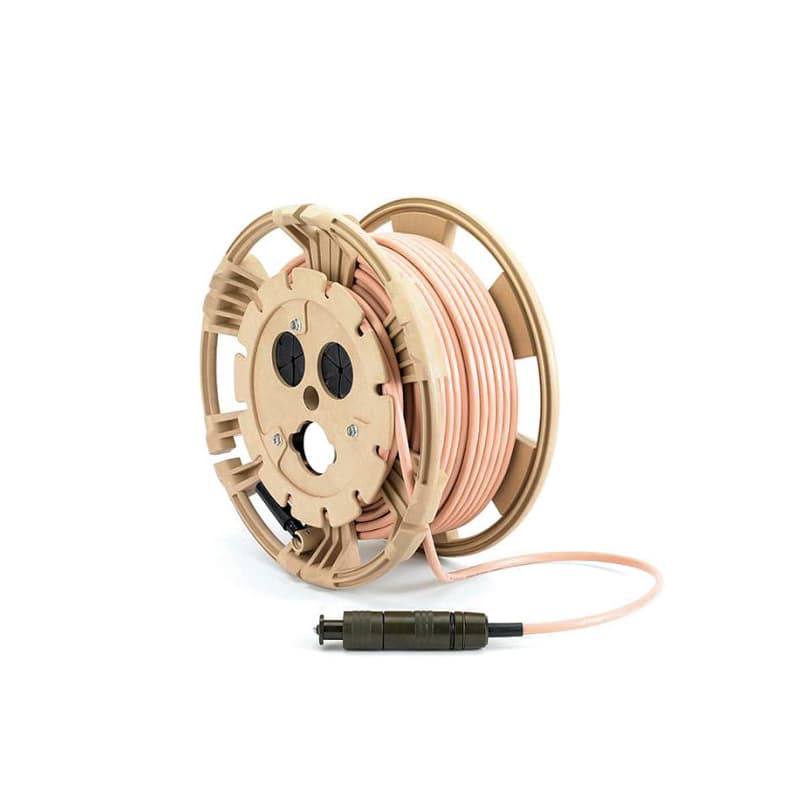

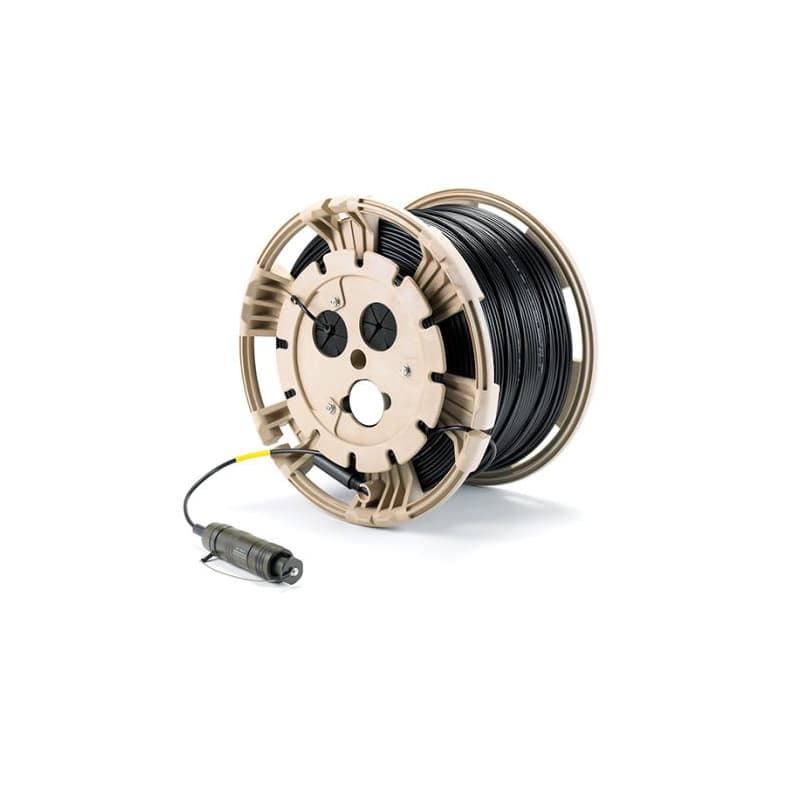

Modular Advanced Reel System Reel

ONEREEL Modular Advanced Reel System Reel can be utilized with basic deployable axles or integrated A-frames, cable management cradles, transport case systems, tripods, bumper mounts, various backpacks, backpacks equipped with fiber optic slip rings, or cartridge systems. The MARS reel itself offers additional features like fiber optic cleaning kits, a fold-out handle, a 30-ft. built-in divider, a connector cradle design, and stackable capabilities. All these attributes, combined with its lower weight compared to typical reel systems, make MARS the most advanced fiber optic reel system currently available.

ONEREEL Modular Advanced Reel System Reel Parameter (Specification)

Parameter	Specification	Performance
Operating Temperature	A336463	-30°C to +71°C
Storage Temperature	A336463	-57°C to +85°C
Temperature-humidity cycling	A336463	+25°C to +65°C, RH 90-98%
Cold Drop Test	A336463	3.5 feet drop at -30°C
Flammability	UL-94 HB	Pass (HB rating)
Vibration	A336463	3 axis, 10-33-10Hz, Horizontal 0.020", Vertical 0.030"

Mechanical Specifications:

Part No.	Flange Diameter	Hub Diameter	Width	Weight	Capacity 5.5mm OD Cable	Capacity 7.2mm OD Cable
***-0100-X-Y-Z	17"	10"	5"	7 lbs.	100m	75m
***-0300-X-Y-Z	17"	8"	7.75"	8.5 lbs.	300m	200m
***-0500-X-Y-Z	17"	8"	10.75"	9.5 lbs.	500m	325m
***-0750-X-Y-Z	17"	8"	14.75"	11 lbs.	750m	500m
***-1000-X-Y-Z	17"	8"	18.75"	12.5 lbs	1000m	675m

ONEREEL Aluminium Structure Field optical Cable Reel Feature and Application

· · Durable Polymer Construction: Fabricated from impact-resistant polymer material, offering durability and strength while maintaining a lightweight design. The material also prevents rust during field operations.

· · Cable Payout and Storage: The integrated cable payout and storage section allows operators to deploy short lengths of fiber cable without unspooling the entire reel. This design does not affect the cable capacity.

· · Molded Hand Grips: Molded hand openings make it easy to transport and deploy the reel manually.

· · Optional Fiber Optic Cleaning Kit: A built-in fiber optic connector cleaning kit option is available, enabling operators to maintain connectors during deployments.

· · Retractable Crank-and-Handle System: The lightweight retractable crank-and-handle system allows for easy reeling in and out of cable, with the handle stowed during transport.

ONEREEL Aluminium Structure Field optical Cable Reel Details

Mobile Emergency Telecommunications Stations and Mobile Tactical Shelters are portable systems used by military and emergency services to quickly restore communications and establish operational bases in disaster or combat zones. Employed by the Army, Navy, and Marine Corps during tactical deployments, these units provide secure, reliable communication in challenging environments. They are also essential for broadcast restoration and deployable communications, ensuring rapid recovery of networks in emergencies or remote areas.
