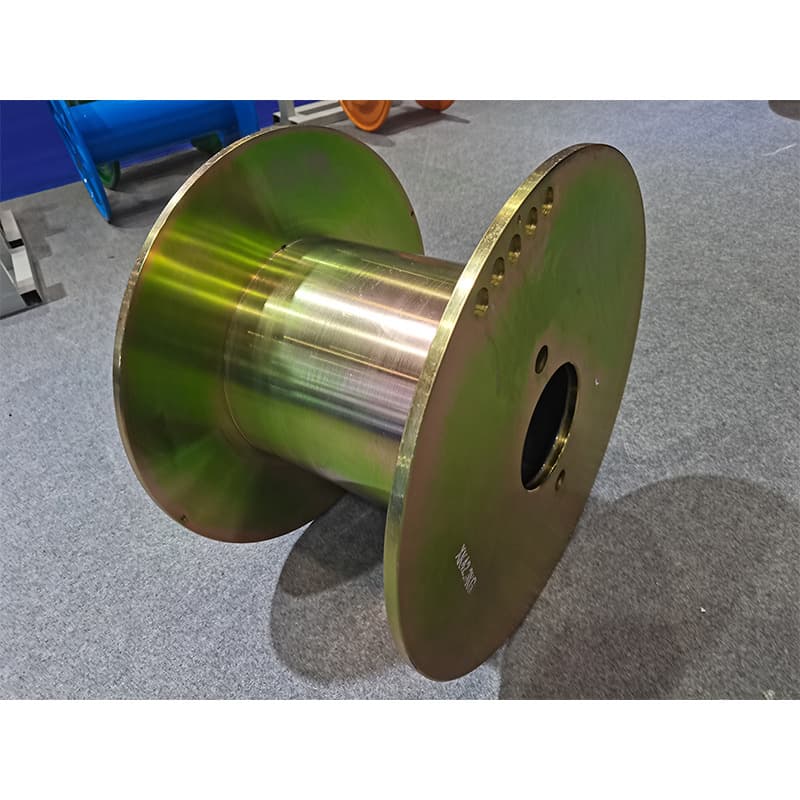

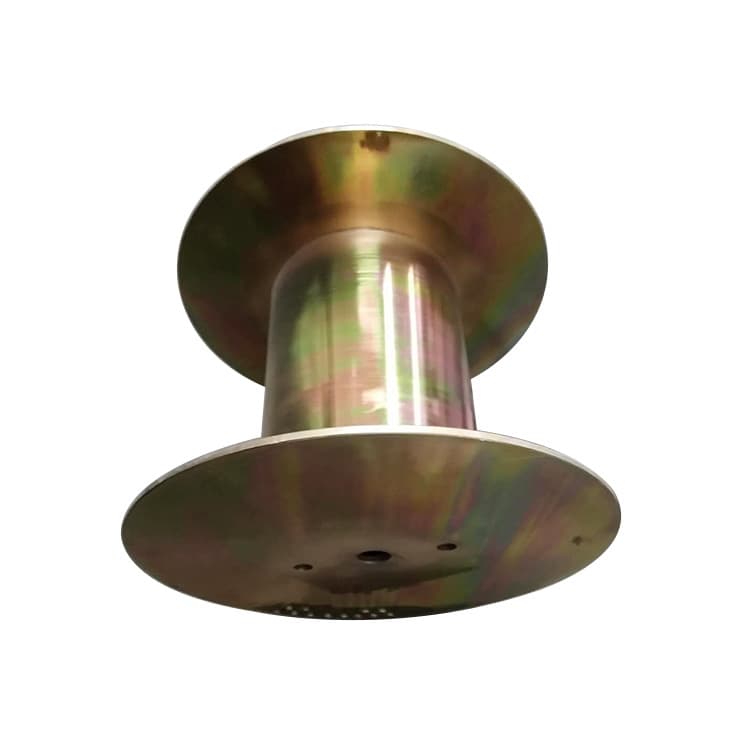

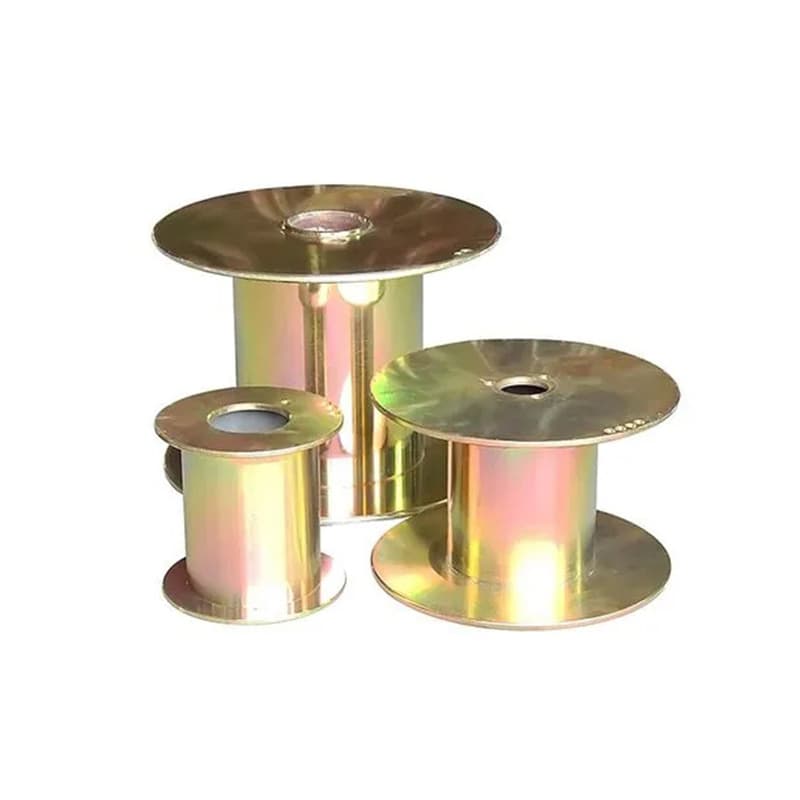

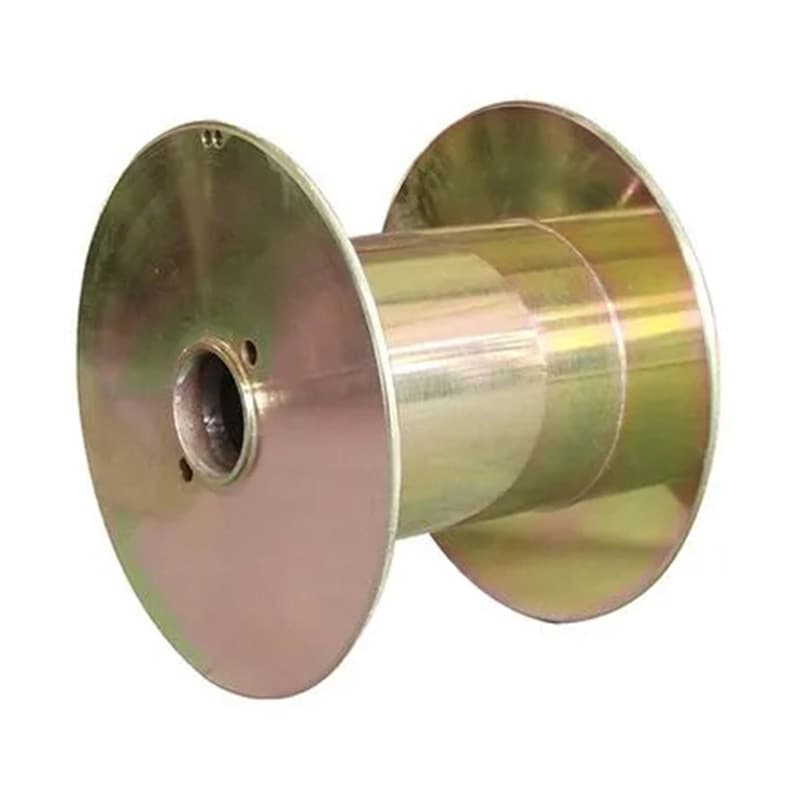

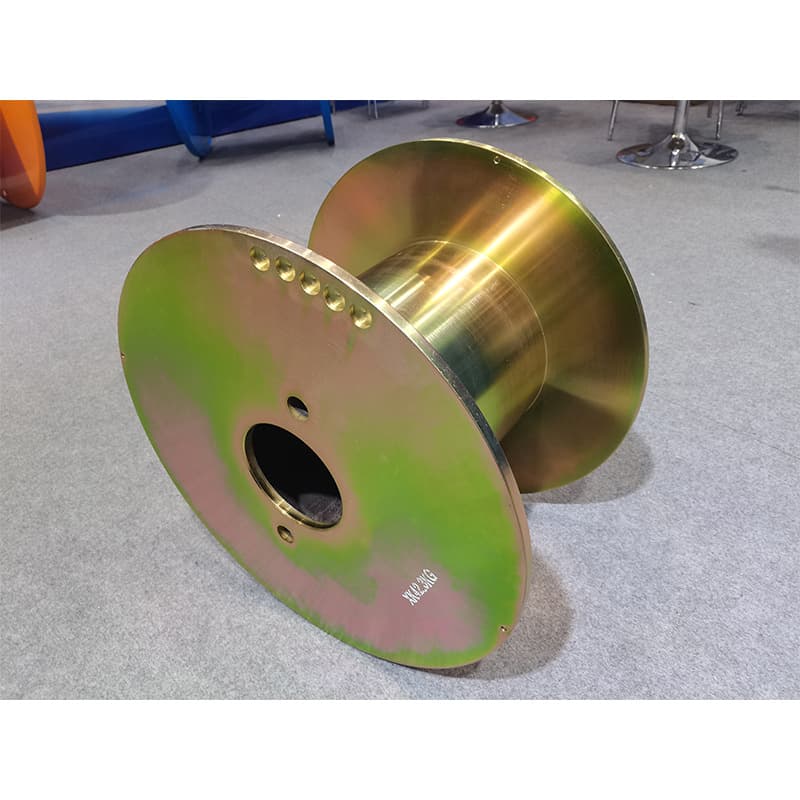

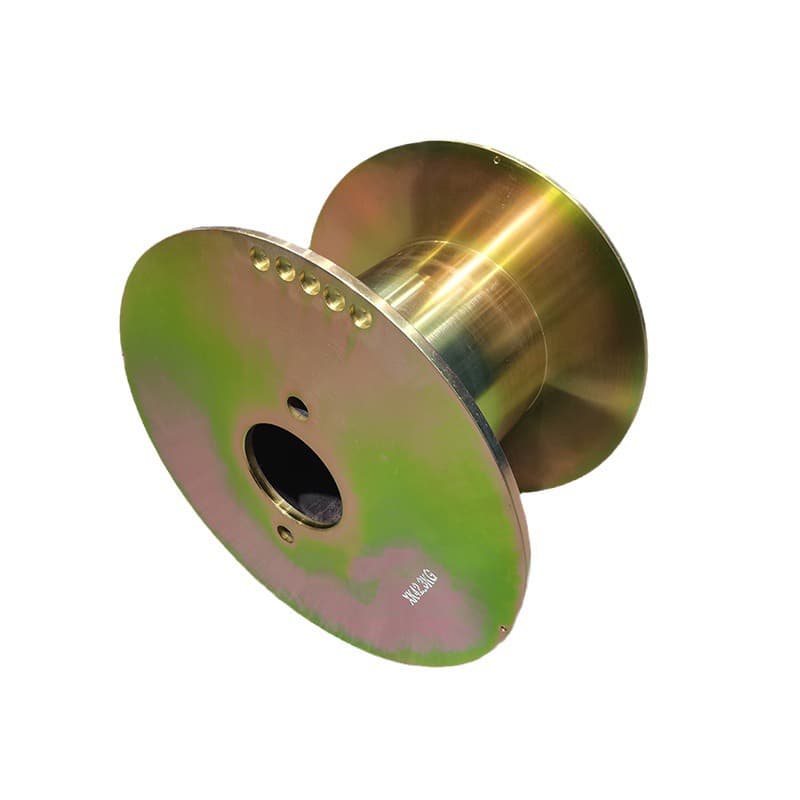

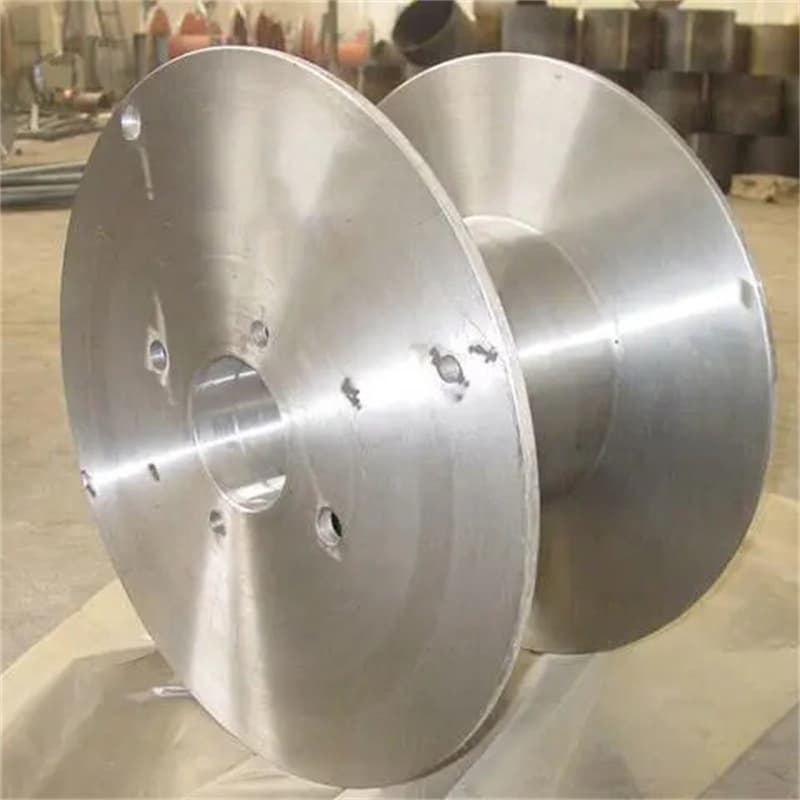

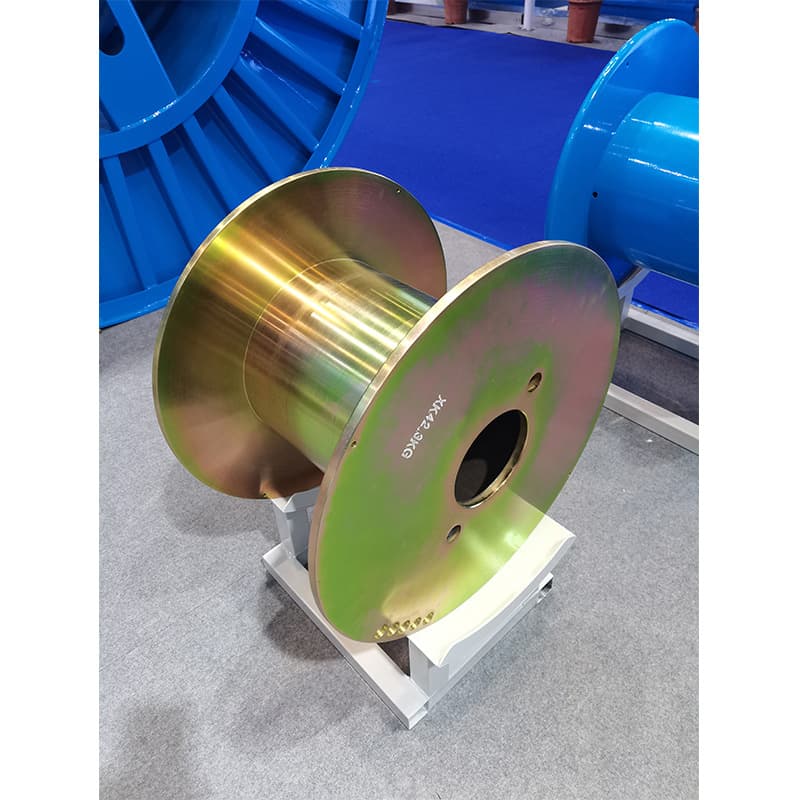

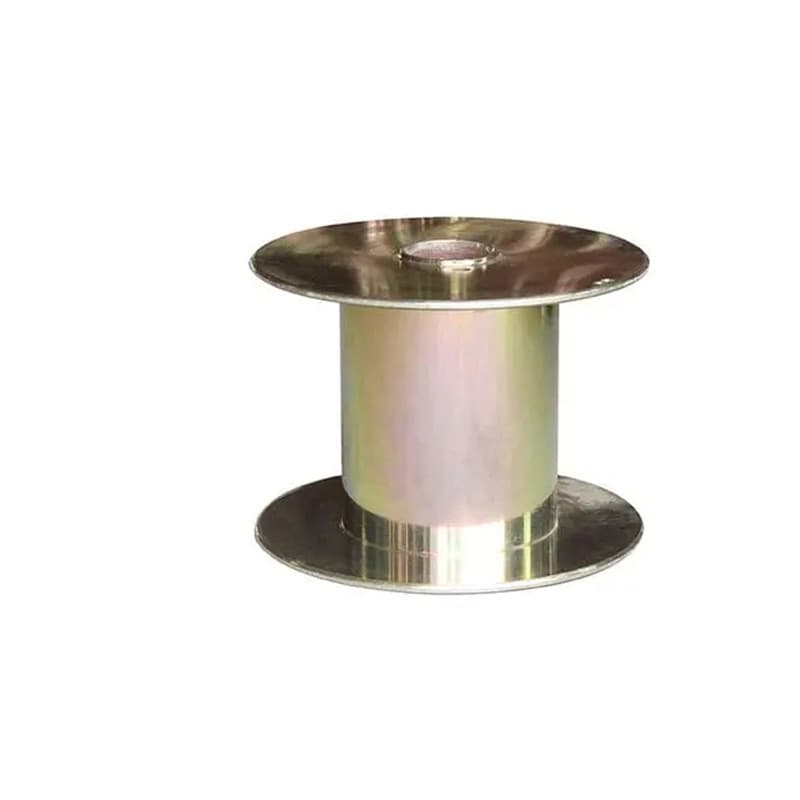

Modular Flat Steel Cable Reel

ONEREEL is the top Modular Flat Steel Cable Reel manufacturer and supplier in China.The Modular Flat Steel Cable Reel is a versatile and durable device designed for efficient management and storage of high-strength cables, including steel and power cables. Featuring a modular design, it allows for flexible adjustment to accommodate different cable lengths and diameters. Constructed from high-strength steel, it is capable of handling heavy loads and long-term use. Its flat design enables space-saving stacking when not in use, and a rotating mechanism facilitates easy winding and unwinding, making it ideal for industrial, construction, and telecommunications applications.

Model:DIN-630

Send Inquiry

Product Description

ONEREEL Modular Flat Steel Cable Reel the ultimate solution for efficient cable management and storage. Designed with versatility and durability in mind, this cable reel is perfect for handling high-strength cables, including steel and power cables. Its modular design allows for easy customization, accommodating various cable lengths and diameters to meet your specific needs.

ONEREEL Modular Flat Steel Cable Reel Parameter (Specification)

Type Specification	D1	D2	D3	D4	D5	E	L1	L2
200	200	100		25	16	40	150	125
300	300	217		127	18	90	290	270
315	315	180/224	160	125/127	16	100	236	200
355	355	200/250	160	125/127	16	100	265	224
400	400	165		70	16	50	270	250
450	450	250/315	160	125/127	28	100	335	280
500	500	217		70/80/127	20	65	320	300
560	560	315/400	160	125/127	280	100	425	355
630	630	355		125	28	100	475	400
710	710	400/500	160	125/127	28	100	530	450
800	800	450	300	250	40	170	600	500
1000	1000	630	300	250	50	250	750	630

ONEREEL Modular Flat Steel Cable Reel Feature and Application

The Modular Flat Steel Cable Reel is designed for a wide range of applications across various industries, thanks to its robust construction and flexible design. Here are some key applications:

1.Construction: Essential for managing and storing long lengths of power cables, communication cables, and steel cables used on construction sites. The reel’s durability and ease of use make it ideal for frequent relocation and deployment.

2.Telecommunications: Facilitates the organization and deployment of communication cables, ensuring efficient and reliable connectivity in both temporary and permanent installations.

3.Industrial: Widely used in manufacturing and processing plants for managing heavy-duty cables required for machinery and equipment operations. Its ability to handle heavy loads and long-term usage is critical in these environments.

3.Utilities: Utilized by electric power companies and other utility providers for the storage and transportation of power cables. The modular design allows for customization to fit varying cable lengths and diameters.

ONEREEL Modular Flat Steel Cable Reel Details

The Modular Flat Steel Cable Reel stands out with several well-thought-out design details that enhance its functionality and usability:

1.High-Strength Steel Construction: Built from premium-grade steel, the reel offers exceptional durability and the capacity to withstand heavy loads, making it ideal for demanding environments.

2.Modular Design: The reel can be easily expanded or adjusted by adding or removing modular sections. This flexibility allows users to customize the reel to accommodate different cable lengths and diameters, providing a tailored storage solution.

3.Flat Design: The reel's flat profile ensures it can be stacked when not in use, saving valuable storage space. This design feature also facilitates easier handling and transportation.
