Yarn Bobbin for Braiding Machines

ONEREEL is the top Yarn Bobbin for Braiding Machines manufacturer and supplier in China.The Yarn Bobbin for Braiding Machines is a durable and precisely made spool used to hold yarn during braiding. It ensures smooth unwinding and stable performance, making it ideal for textile, cable, and rope production.

Model:OYB-1

Send Inquiry

Product Description

Yarn Bobbin for Braiding Machines

The ONEREEL Yarn Bobbin for Braiding Machines is a high-quality component designed to ensure smooth and consistent yarn delivery during the braiding process. Manufactured from durable materials, it provides excellent stability and precision, helping to improve the overall efficiency and output of braiding machines. Widely used in textile, rope, and cable manufacturing, this bobbin is compatible with various machine types and supports high-speed operation with minimal yarn tension issues.

ONEREEL Yarn Bobbin for Braiding Machines Parameter (Specification)

Model	Spindle	Head	Pitch Size (mm)	Bobbin Size (mm)	Braiding Range	Speed (RPM)
112/4	12	4	90	47×140/175/195	1–6	330
216/2	16	2	90	47×140/175/195	1–8	330
316/4	16	4	90	47×140/175/195	1–8	330
424/2	24	2	90	47×140/175/195	3–12	330
532/2	32	2	90	47×140/175/195	6–15	330
648/1	48	1	90	47×140/175/195	8–20	330
764/1	64	1	90	47×140/175/195	8–24	330

ONEREEL Yarn Bobbin for Braiding Machines Feature and Application

· · High-strength material: Made from premium plastic or aluminum for excellent durability and wear resistance.

· · Precision dimensions: Accurately engineered to ensure compatibility and smooth operation with various braiding machines.

· · Smooth yarn release: Designed for consistent yarn unwinding to prevent tangling or breakage.

· · Wide application: Suitable for use in cable, rope, and textile braiding industries.

· · Multiple sizes available: Offered in a range of sizes and specifications to meet different braiding requirements.

ONEREEL Yarn Bobbin for Braiding Machines Detail

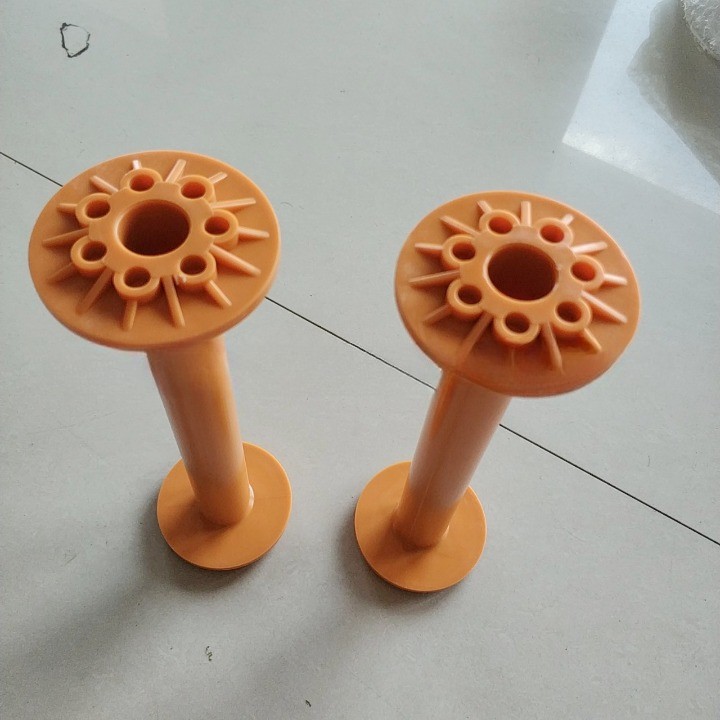

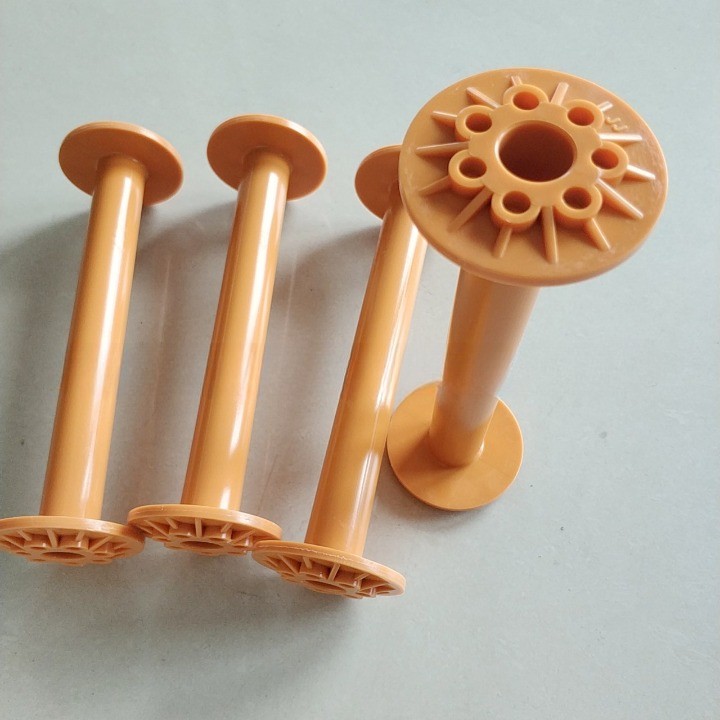

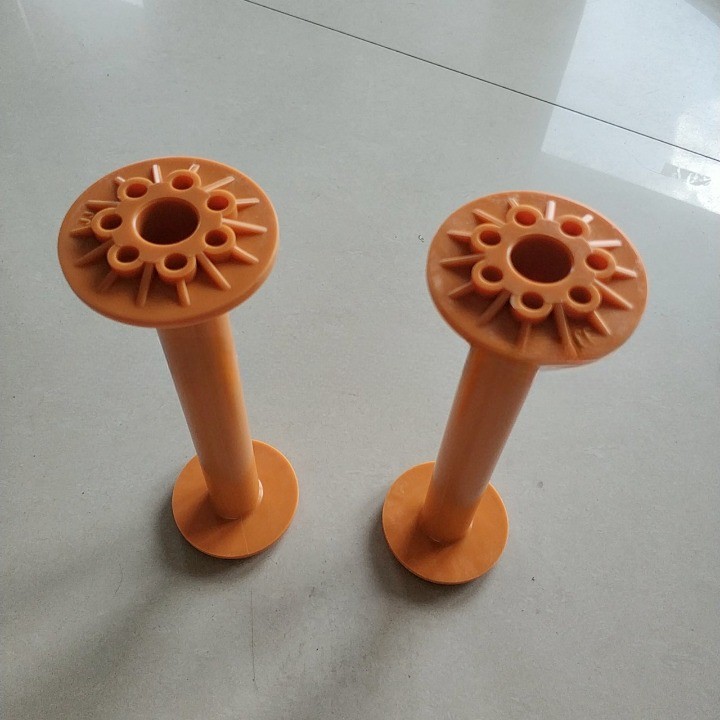

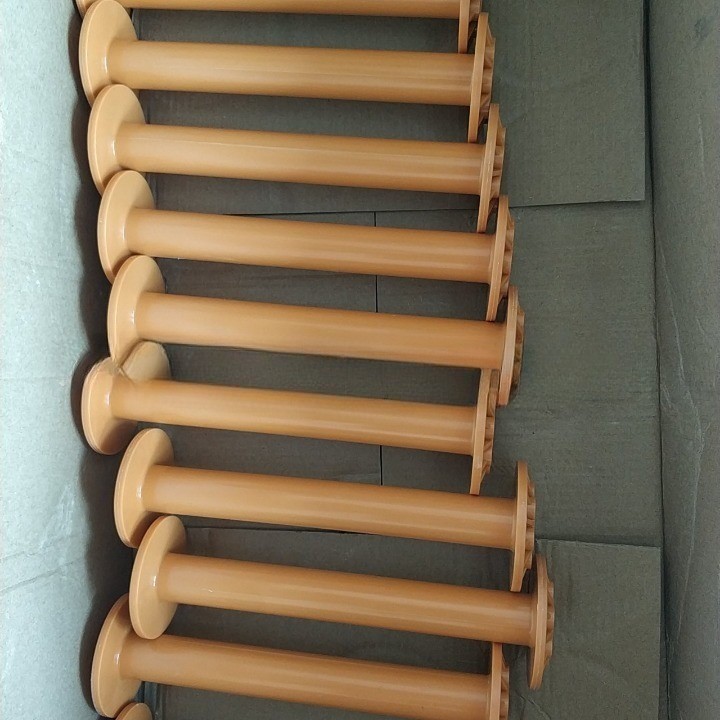

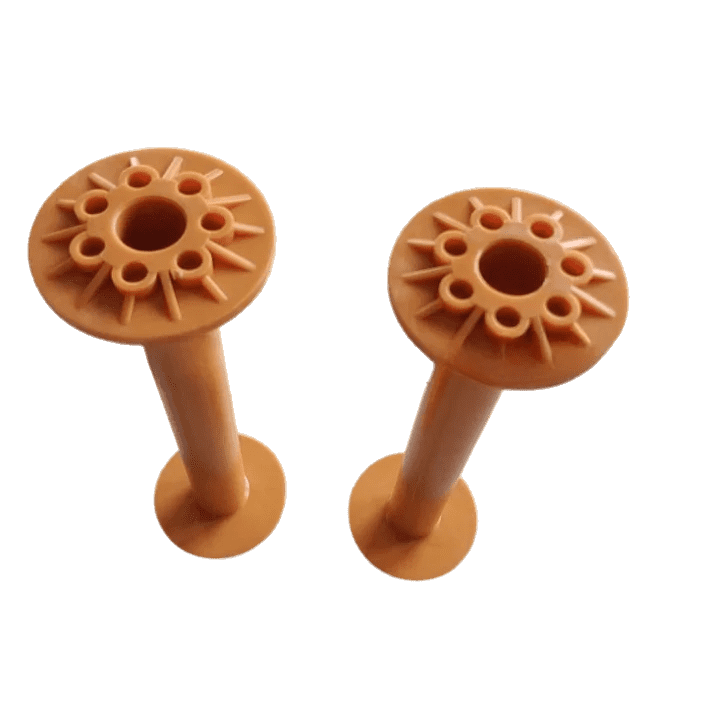

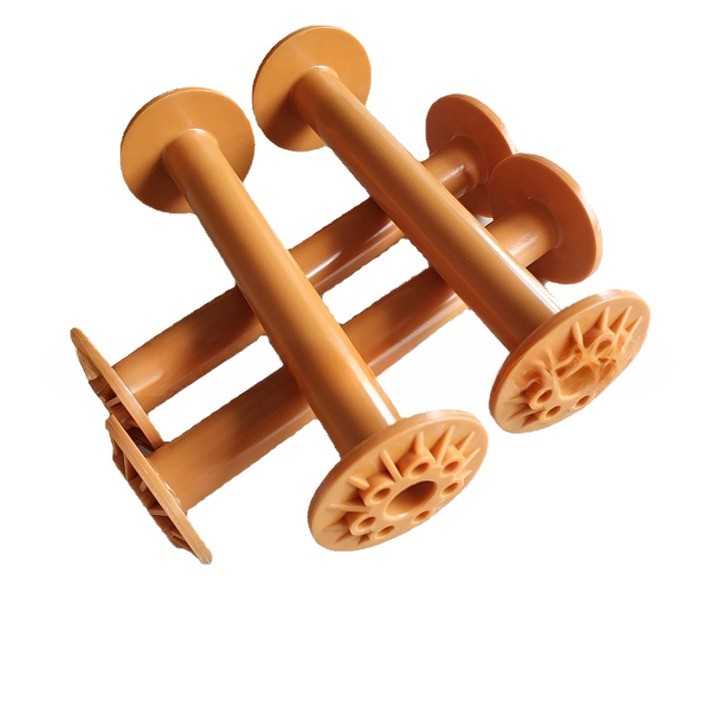

This yarn bobbin is made from high-quality plastic, featuring precise dimensions for smooth rotation and stable performance in braiding machines. It supports various bobbin sizes and ensures even yarn release, making it ideal for high-speed textile and cable braiding applications.
