Casted Corrugated Wire Spool

NINGBO ONEREEL MACHINE CO., LTD. is one of the Casted Corrugated Wire Spool manufacturers and exporters in China.
ONEREEL® is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels.
With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions. Focusing on top quality, superior innovation, reasonable price and strong competitiveness, our products have been appreciated and recognized by majority of customers. So far we have built long-term cooperation with more than 60 well-known enterprises from domestic and oversea market.
The company hold on philosophy of “Create value, Quality first, Credit first”. Effective and Strict internal management, precisely control quality and delivery time, pursuing integrity services, we always put customer satisfaction as the highest goal.
Wholesale price can be given based on the advantage of owning a factory.Buy high speed wire/cable reels online in China, copper wire basket, please do not hesitate to contact ONEREEL.

Model:DIN-3150

Send Inquiry

PDF DownLoad

Product Description

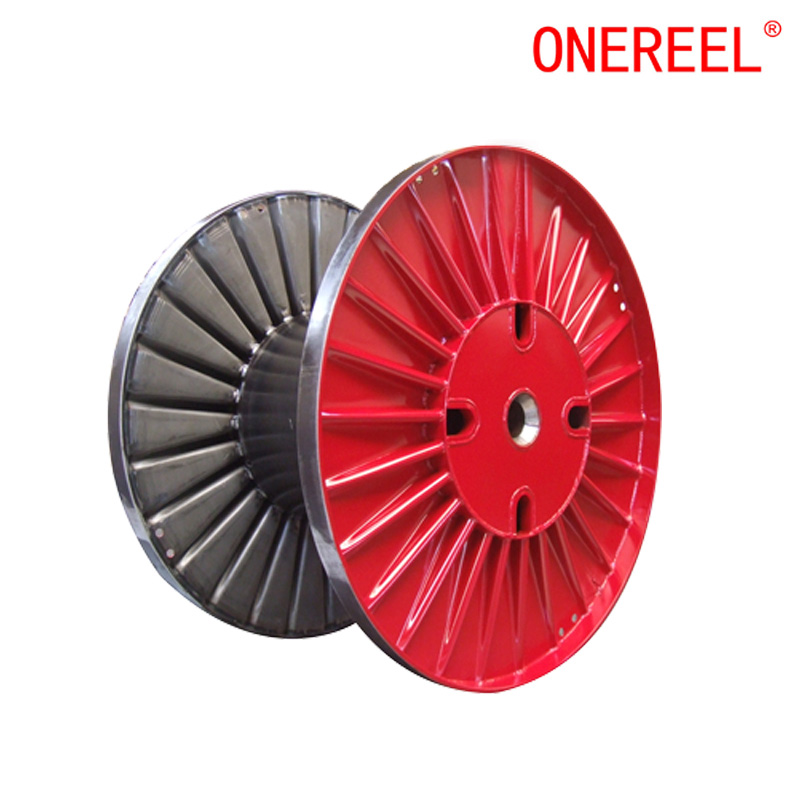

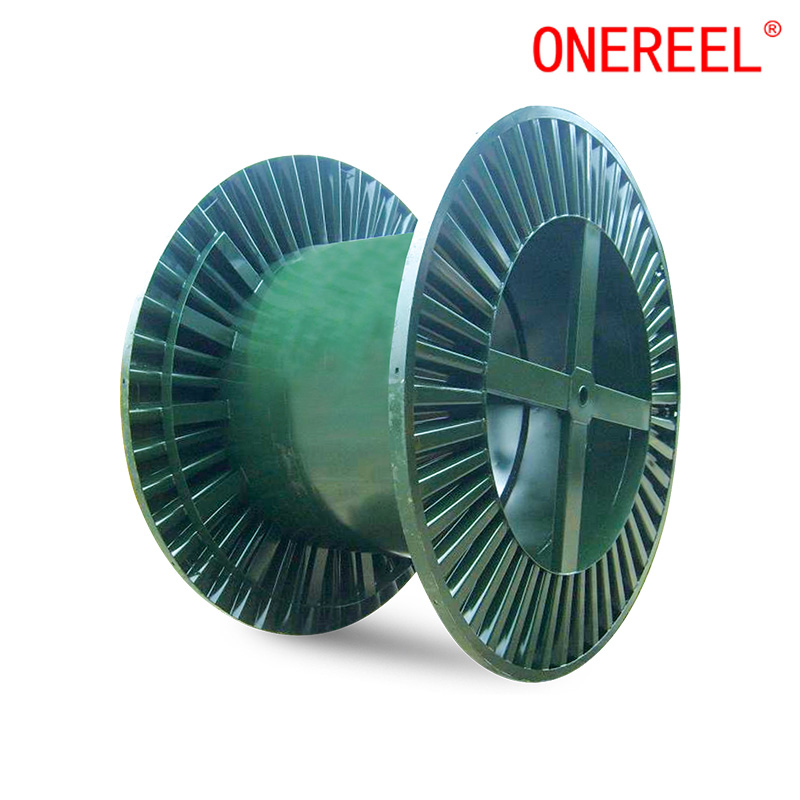

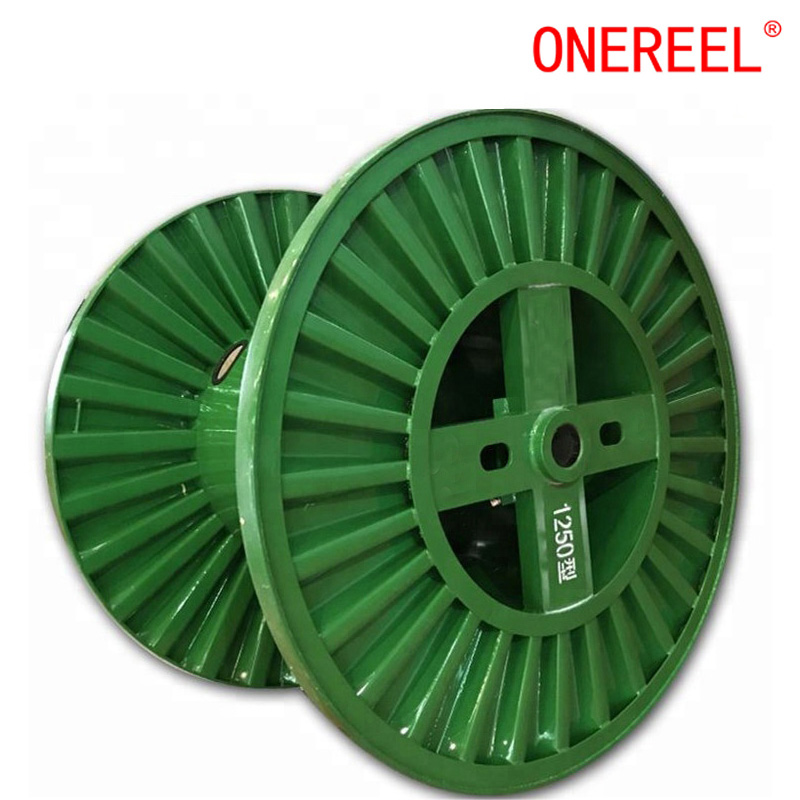

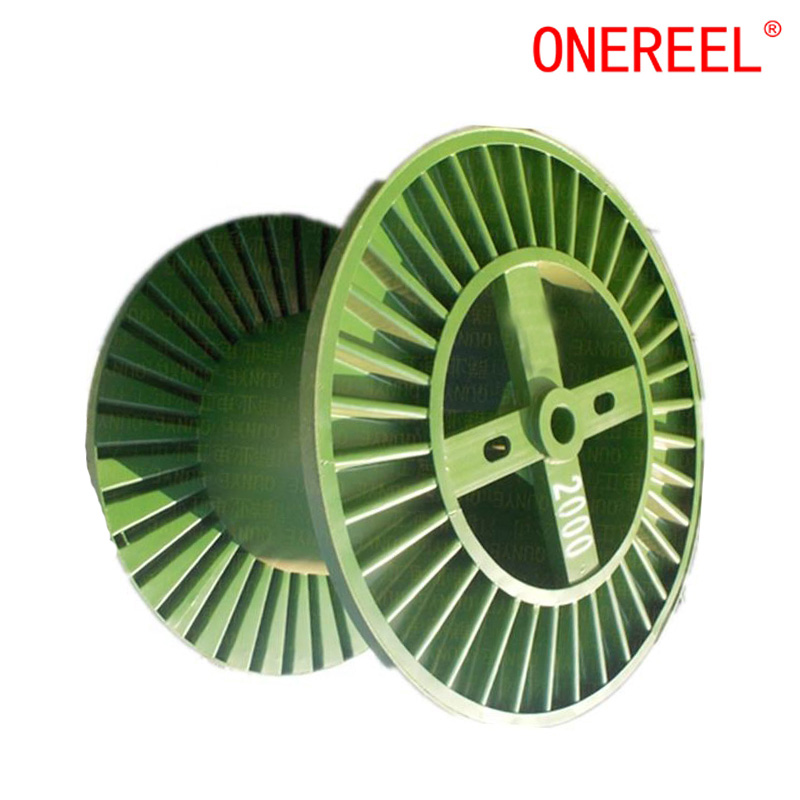

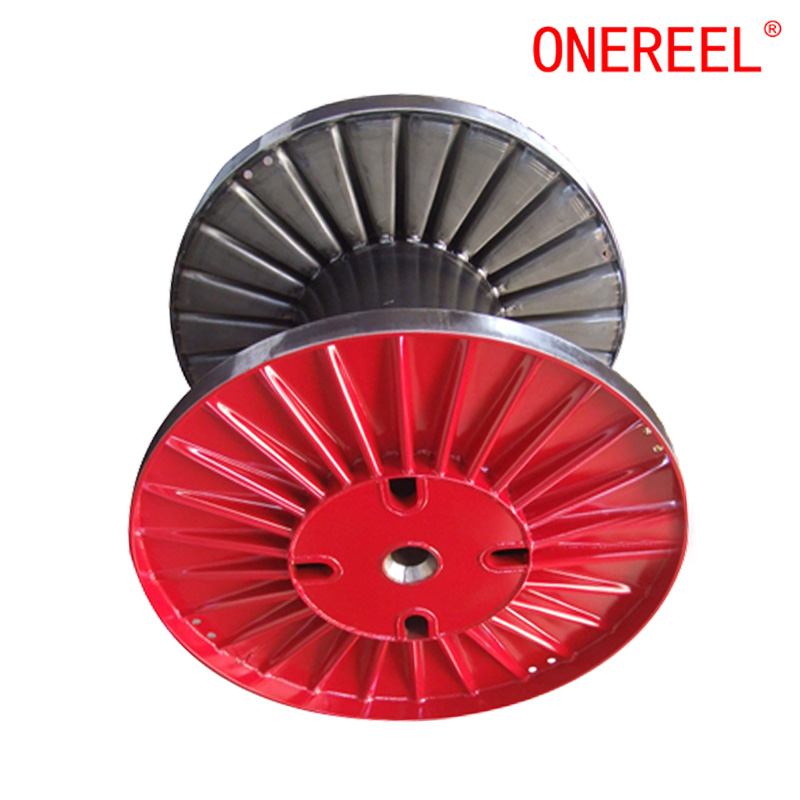

ONEREEL® Casted Corrugated Wire Spools a Best-selling quality product.

Casted Corrugated Wire Spool Applicant in Cable and rope process (reinforced version) or transportation (lightweight version). Can be supplied as knock down condition to reduce transport cost. We painted outside flanges as per customer’s specification. Fully painted, zinc galvanized.

Standard flange (mm):800、900、 1000、1150、12501400、1600、1800、2000 and over. Other dimensions are available. We can design and tailor various non-standard items subject to the specific requirements of the customers.

ONEREEL® Casted Corrugated Wire Spool Parameter (Specification)

Model	D1	D2	D3	D4	D5	E	L1	L2
DIN800	800	400	160	80	28-40	160	600	500
DIN900	900	450	160	80	28-40	160	670	560
DIN1000	1000	500	160	80	28-40	160	750	630
DIN1150	1150	560	160	80	28-40	160	850	710
DIN1250	1250	630	160	80	28-40	160	950	800
DIN1400	1400	710	160	80	28-40	300	1060	900
DIN1600	1600	800	160	80	28-40	300	1180	1000
DIN1800	1800	1000	200	100	28-40	300	1320	1120
DIN2000	2000	1120	250	125	28-40	300	1500	1250
DIN2240	2240	1250	250	125	28-40	300	1700	1400
DIN2500	2500	1500	250	125	28-40	300	1900	1600
DIN2800	2800	1800	280	140	28-40	300	2120	1800
DIN3150	3150	1900	300	160	28-40	500	2300	2000

ONEREEL Casted Corrugated Wire Spool Feature and Application

We manufacture corrugated steel cable reel for wire with a flange diameter of 600 mm to 3500 mm and a load capacity of up to 250 tons.

Application: For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment

Customization: Reinforced version for drum twist machine Light version for shipping use Knock down to be welded or to be assembled by screws to reduce transport cost Non-standard traverse width & barrel Smooth internal flange surface (Replaceable) hardened bushing of the central bore Big or small bore Painted or stamped weight, logo, numbering ... on flanges

Feature：

1, Corrugated steel cable reel Flange range from 600mm to 3000mm.

2, 2 types: flat type & corrugated type

3, cable reel Barrel can be made of 2 parts or 4 parts.

4, Factory price

5, MOQ=1*20ft container

6, OEM service offered

ONEREEL Casted Corrugated Wire Spool Details

Material: Q235, Q345 (Chinese steel code),

stainless steel Standard: DIN46391/DIN 46395 / DIN 46397 / GB 4004-83 / JB/T 8997.4-1999

Surface finish: Fully painted, zinc galvanized.

FAQ

What is your products standardization?
our products strictly comply with ISO9001 and CE standards.

Can you can design the spool according to our size?
Yes, we have a professional team of engineers who can complete the manufacture of the spool you provide.

How many years have your company made this kind of spool?
We have been making spools more than 20 years.

Are you a trading company or a manufacturer?
we are a manufacturer of spool technology and design.

How long is your delivery time?
we will deliver the order as soon as we receive it.
