Corrugated Cable Drum

ONEREEL® is the top Corrugated Cable Drum Reel manufacturer and supplier in China. Each specific product has its own production line.
Whether you need a tubular reel for lightweight shipping of pipe or conduit, a custom-designed process reel for take-up and take-off solutions in heavy-duty processing industries, or spool reusable for wire and cable applications, our steel coil series can be customized according to your requirements. Wholesale price can be given based on the advantage of owning a factory.
Buy high speed wire/cable reels online in China, copper wire basket, please do not hesitate to contact ONEREEL.

Model:DIN-2240

Send Inquiry

PDF DownLoad

Product Description

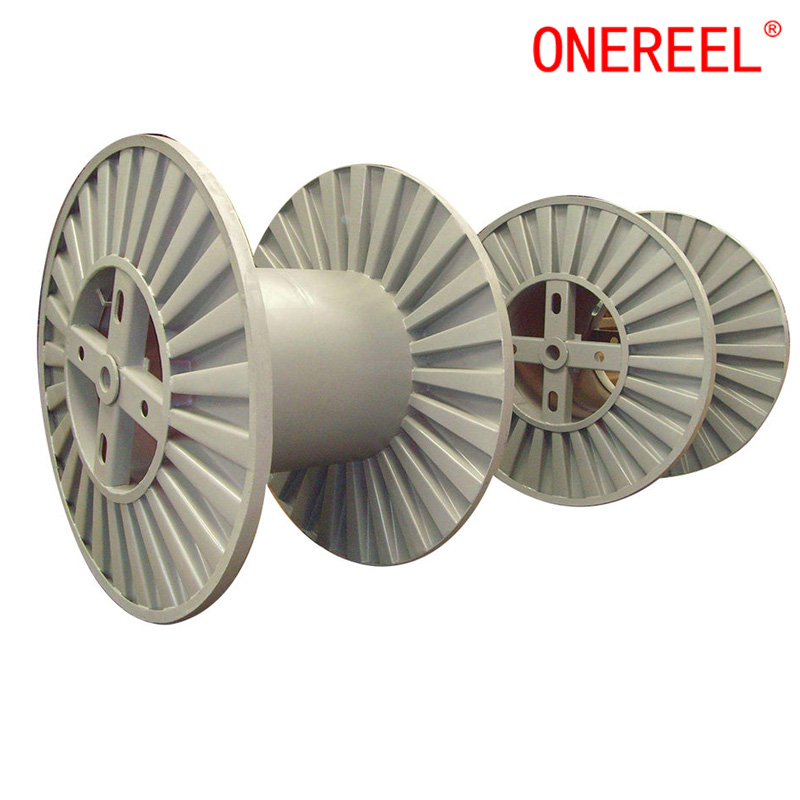

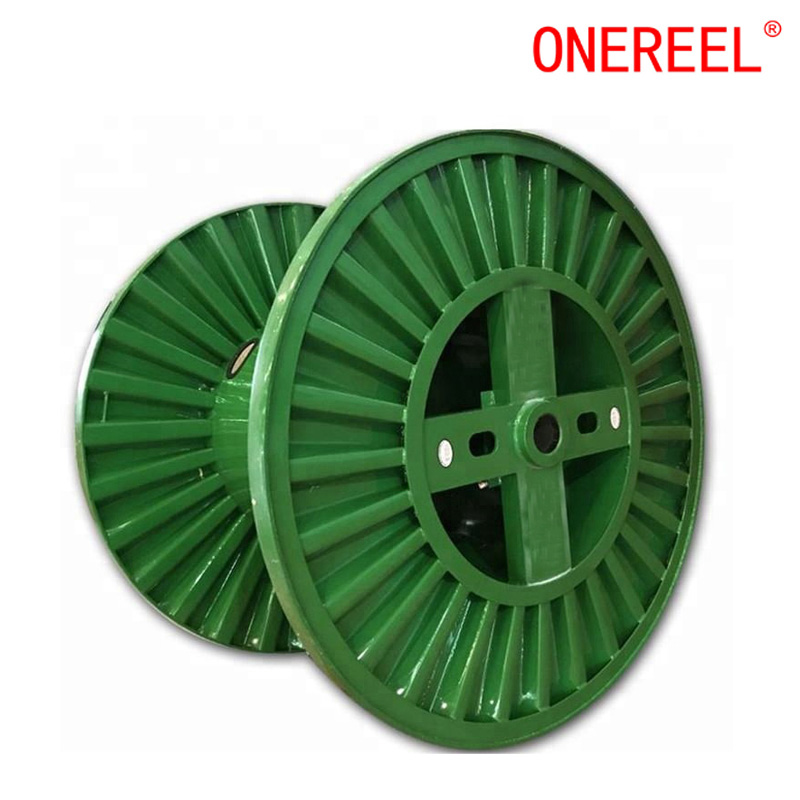

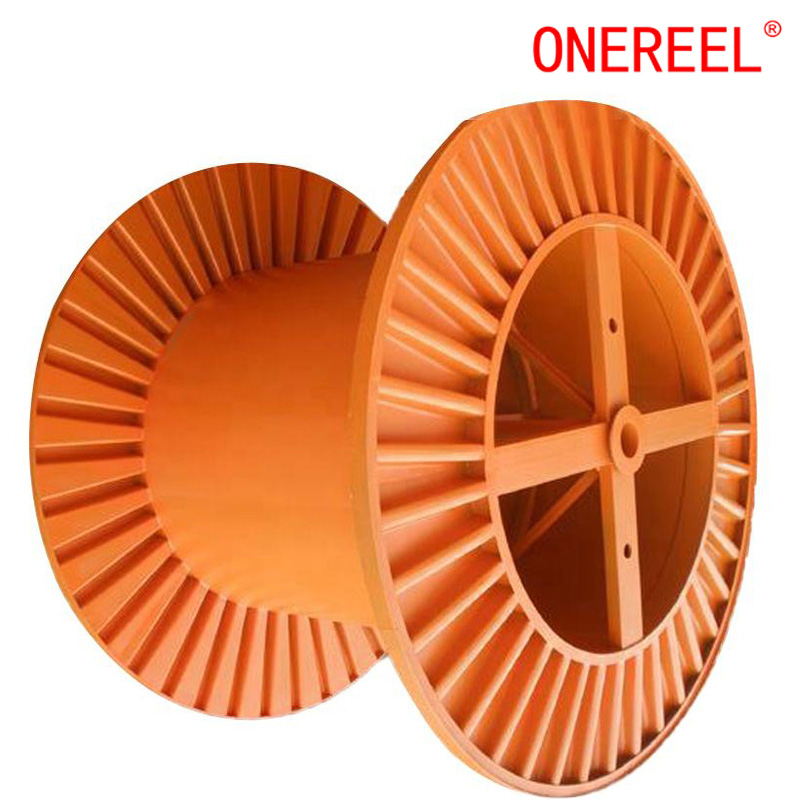

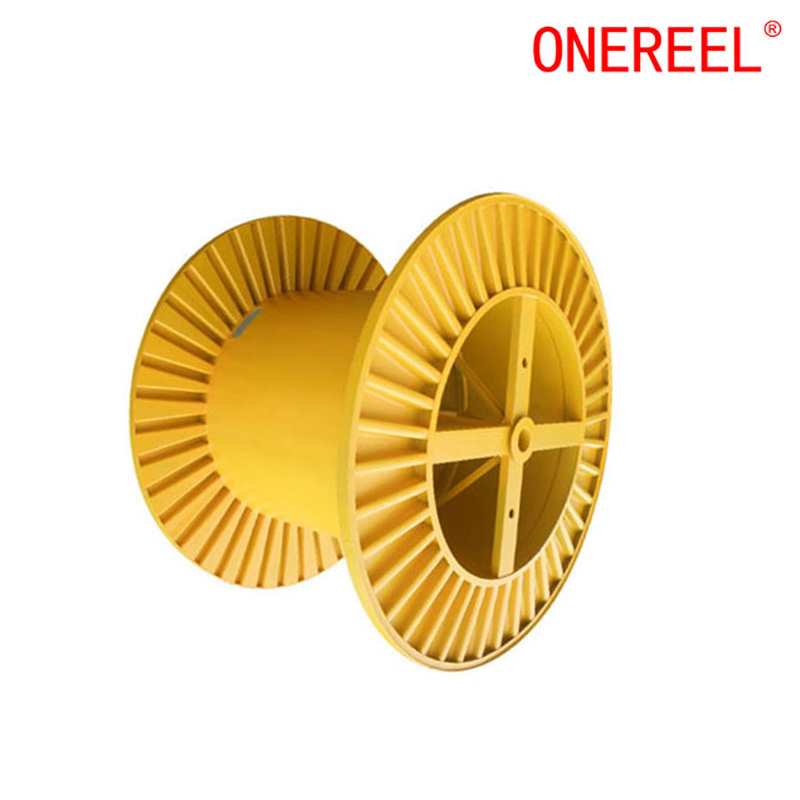

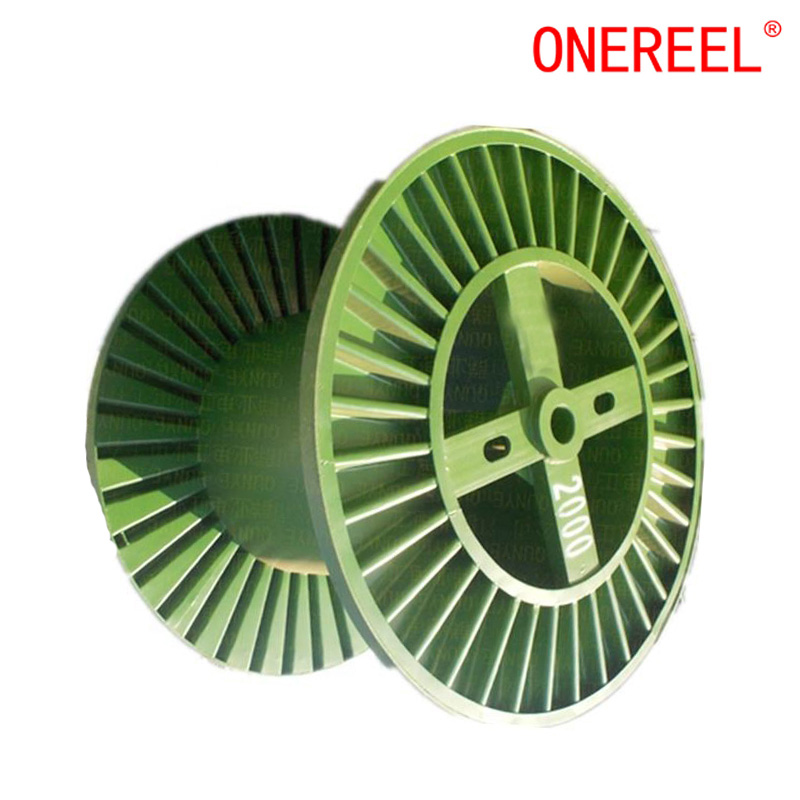

ONEREEL® Corrugated Cable Drum Reel is a Best-selling quality product.

Corrugated Cable Drum Reel Applicant in Cable and rope process (reinforced version) or transportation (lightweight version). Can be supplied as knock down condition to reduce transport cost. We painted outside flanges as per customer’s specification. Fully painted, zinc galvanized.

Standard flange (mm): 1000, 1250,1600,1800,2000 and over. Other dimensions are available.

Optional: Statically or dynamically balancing, hardened changeable bushings, barrel and flanges with reinforcements for heavy duty process (drum twister), lifting hooks, slots for fixing the cable.

ONEREEL® Corrugated Cable Drum Reel Parameter (Specification)

Model	D1	D2	D3	D4	D5	E	L1	L2
DIN800	800	400	160	80	28-40	160	600	500
DIN900	900	450	160	80	28-40	160	670	560
DIN1000	1000	500	160	80	28-40	160	750	630
DIN1150	1150	560	160	80	28-40	160	850	710
DIN1250	1250	630	160	80	28-40	160	950	800
DIN1400	1400	710	160	80	28-40	300	1060	900
DIN1600	1600	800	160	80	28-40	300	1180	1000
DIN1800	1800	1000	200	100	28-40	300	1320	1120
DIN2000	2000	1120	250	125	28-40	300	1500	1250
DIN2240	2240	1250	250	125	28-40	300	1700	1400
DIN2500	2500	1500	250	125	28-40	300	1900	1600
DIN2800	2800	1800	280	140	28-40	300	2120	1800
DIN3150	3150	1900	300	160	28-40	500	2300	2000

ONEREEL Corrugated Cable Drum Reel Feature and Application

Corrugated Cable Drum Reel use of steel plate, stamping and welding, with good rigidity, high strength and light weight. Apply for bunching machine, stranding machine, extruding machine.

ONEREEL Corrugated Cable Drum Reel Details

1. Dimension according to customer’s specification or GB4004-83, JB/T7600.3-94, DIN46395 standard.

2. Use of steel plate, stamping and welding, with good rigidity, high strength and light weight.

3. Corrugated cable drum used for production process for cables, ropes, insulated cables which are in extrusion, drum twisting or layup process, or shipping of finished products to reduce transport cost.

FAQ

What is your products standardization?
our products strictly comply with ISO9001 and CE standards.

Can you can design the spool according to our size?
Yes, we have a professional team of engineers who can complete the manufacture of the spool you provide.

How many years have your company made this kind of spool?
We have been making spools more than 20 years.

Are you a trading company or a manufacturer?
we are a manufacturer of spool technology and design.

How long is your delivery time?
we will deliver the order as soon as we receive it.
