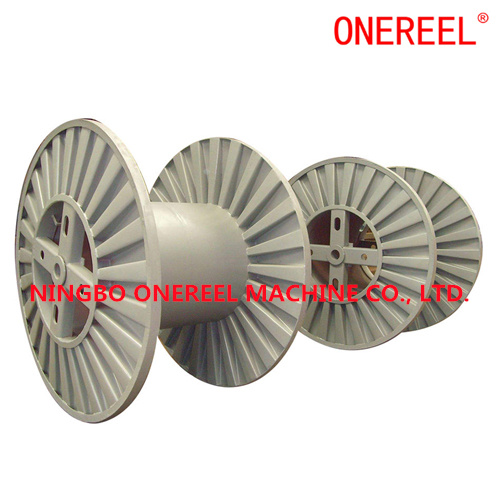

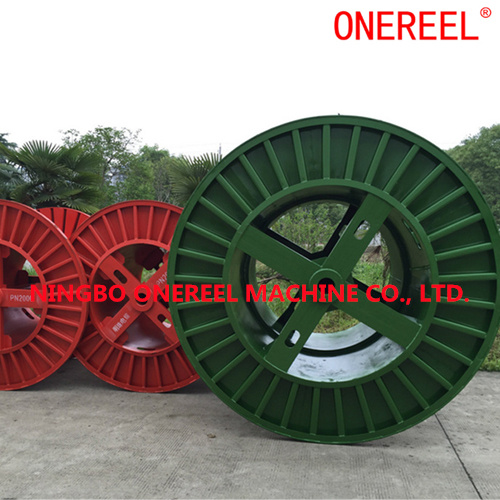

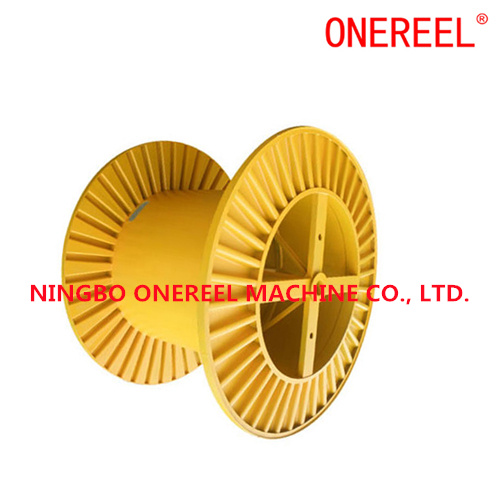

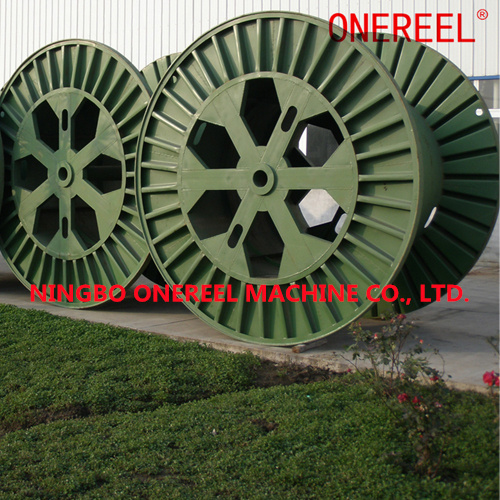

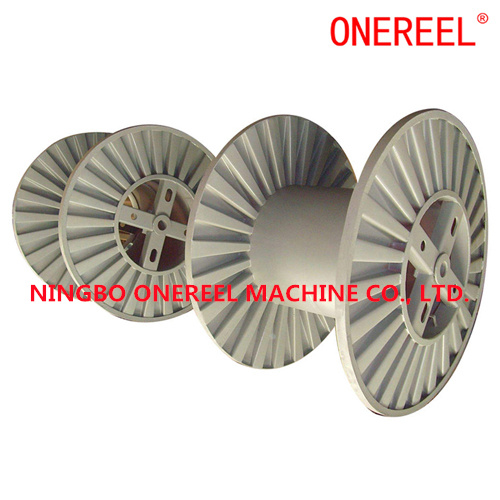

Corrugated Steel Cable Spool

ONEREEL® established in 2001,is one of the Corrugated Steel Cable Spool manufacturers and exporters in China.Company located in Ningbo City,near Ningbo Seaport and Ningbo Airport.
ONEREEL® Produce line include wooden bobbin,steel bobbin , plywood bobbin,reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels, and plastic bobbin etc.
ONEREEL® With strong technological capabilities and full series of production equipment. We can design and tailor various non-standard items subject to the specific requirements of the customers.
Focusing on top quality, superior innovation, reasonable price and strong competitiveness, our products have been appreciated and recognized by majority of customers.

Model:DIN-1600

Send Inquiry

Product Description

ONEREEL® Corrugated Steel Cable Spools are exported to more than 100 countries such as the United States, Mexico, Canada, Vietnam, Russia, Singapore, Thailand, India, etc.All ONEREEL® reels have passed ISO9001:2000 quality system certification to ensure product quality. We provide excellent quality control, competitive prices and effective oem and odm services.
All of ONEREEL® Steel Cable Spools follows GB4004-83, JB/T8997, DIN46395, DIN46397 standards.
ONEREEL® Steel Cable Spool Standard flange (mm):800、900、 1000、1150、12501400、1600、1800、2000 and over.
ONEREEL® Provide Effective OEM&ODM service,Welcome to inquire anytime.

ONEREEL® Corrugated Steel Cable Spool Parameter (Specification)

Model	D1	D2	D3	D4	D5	E	L1	L2
DIN800	800	400	160	80	28-40	160	600	500
DIN900	900	450	160	80	28-40	160	670	560
DIN1000	1000	500	160	80	28-40	160	750	630
DIN1150	1150	560	160	80	28-40	160	850	710
DIN1250	1250	630	160	80	28-40	160	950	800
DIN1400	1400	710	160	80	28-40	300	1060	900
DIN1600	1600	800	160	80	28-40	300	1180	1000
DIN1800	1800	1000	200	100	28-40	300	1320	1120
DIN2000	2000	1120	250	125	28-40	300	1500	1250
DIN2240	2240	1250	250	125	28-40	300	1700	1400
DIN2500	2500	1500	250	125	28-40	300	1900	1600
DIN2800	2800	1800	280	140	28-40	300	2120	1800
DIN3150	3150	1900	300	160	28-40	500	2300	2000

ONEREEL Corrugated Steel Cable Spool Feature and Application

Application: For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment

Customization: Reinforced version for drum twist machine Light version for shipping use Knock down to be welded or to be assembled by screws to reduce transport cost Non-standard traverse width & barrel Smooth internal flange surface (Replaceable) hardened bushing of the central bore Big or small bore Painted or stamped weight, logo, numbering ... on flanges

Feature：

1, Empty Steel Cable Reel Flange range from 600mm to 3000mm.

2, 2 types: flat type & corrugated type

3, cable reel Barrel can be made of 2 parts or 4 parts.

4, Factory price

5, MOQ=1*20ft container

6, OEM service offered

ONEREEL Corrugated Steel Cable Spool Details

Material: Q235, Q345 (Chinese steel code),

stainless steel Standard: DIN46391/DIN 46395 / DIN 46397 / GB 4004-83 / JB/T 8997.4-1999

Surface finish: Fully painted, zinc galvanized.

FAQ

What is your products standardization?
our products strictly comply with ISO9001 and CE standards.

Can you can design the spool according to our size?
Yes, we have a professional team of engineers who can complete the manufacture of the spool you provide.

How many years have your company made this kind of spool?
we have been making spools for ten years.

Are you a trading company or a manufacturer?
we are a manufacturer of spool technology and design.

How long is your delivery time?
we will deliver the order as soon as we receive it.
