Corrugated Wire Reels

NINGBO ONEREEL MACHINE CO.established in 2001, is a factory of wooden bobbin,steel bobbin , plywood bobbin,of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels, and plastic bobbin etc.
We have exported more than 100countries like U.S.A, Mexico, Canada, Vietnam, Russia, Singapore, Thailand, India etc.For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment .
All of ONEREEL® Corrugated Wire Reels have passed the quality system certification ISO9001:2000 to ensure the product quality. We offer Good quality control Highly competitive prices and Effective OEM&ODM service.

Model:DIN-2800

Send Inquiry

Product Description

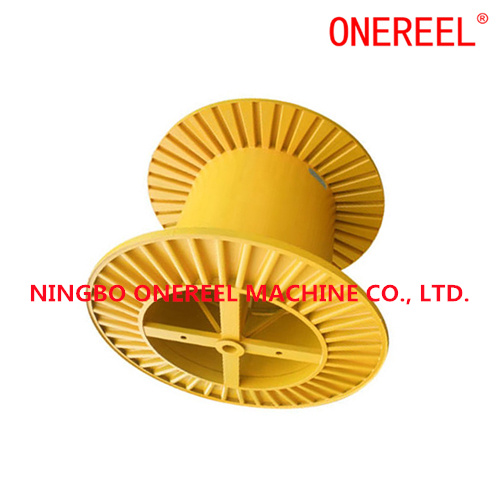

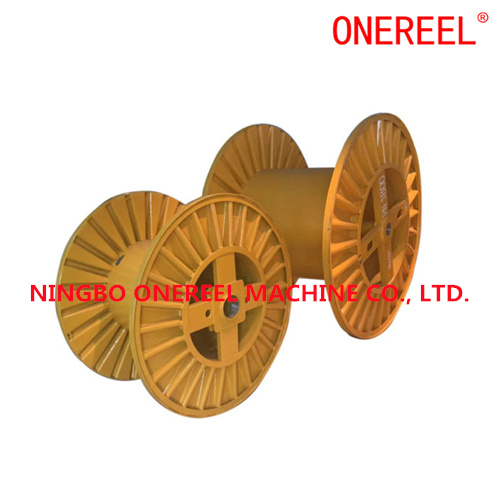

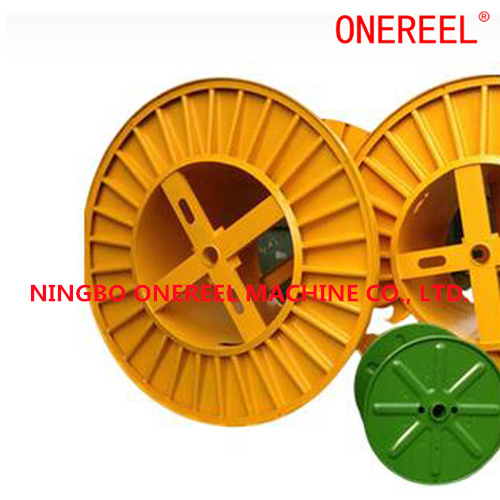

Corrugated Wire Reels are suitable for the production, transportation and delivery of wire and cable products.

All of ONEREEL® Corrugated Wire Reels have passed the quality system certification ISO9001:2000 to ensure the product quality.

ONEREEL® Metal Cable Spool Standard flange (mm):800、900、 1000、1150、12501400、1600、1800、2000 and over.
We tailored to your requirements:we manufacture high-quality drums and spools of all kinds and sizes up to a diameter of 5,000 mm and a maximum unit weight of 6,000 kg.

ONEREEL® Corrugated Wire Reels Parameter (Specification)

Model	D1	D2	D3	D4	D5	E	L1	L2
DIN800	800	400	160	80	28-40	160	600	500
DIN900	900	450	160	80	28-40	160	670	560
DIN1000	1000	500	160	80	28-40	160	750	630
DIN1150	1150	560	160	80	28-40	160	850	710
DIN1250	1250	630	160	80	28-40	160	950	800
DIN1400	1400	710	160	80	28-40	300	1060	900
DIN1600	1600	800	160	80	28-40	300	1180	1000
DIN1800	1800	1000	200	100	28-40	300	1320	1120
DIN2000	2000	1120	250	125	28-40	300	1500	1250
DIN2240	2240	1250	250	125	28-40	300	1700	1400
DIN2500	2500	1500	250	125	28-40	300	1900	1600
DIN2800	2800	1800	280	140	28-40	300	2120	1800
DIN3150	3150	1900	300	160	28-40	500	2300	2000

ONEREEL Corrugated Wire Reels Feature and Application

Application: For high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment

Customization: Reinforced version for drum twist machine Light version for shipping use Knock down to be welded or to be assembled by screws to reduce transport cost Non-standard traverse width & barrel Smooth internal flange surface (Replaceable) hardened bushing of the central bore Big or small bore Painted or stamped weight, logo, numbering ... on flanges

Feature：

1, Empty Steel Cable Reel Flange range from 600mm to 3000mm.

2, 2 types: flat type & corrugated type

3, cable reel Barrel can be made of 2 parts or 4 parts.

4, Factory price

5, MOQ=1*20ft container

6, OEM service offered

ONEREEL Corrugated Wire Reels Details

Material: Q235, Q345 (Chinese steel code),

stainless steel Standard: DIN46391/DIN 46395 / DIN 46397 / GB 4004-83 / JB/T 8997.4-1999

Surface finish: Fully painted, zinc galvanized.

FAQ

What is your products standardization?
our products strictly comply with ISO9001 and CE standards.

Can you can design the spool according to our size?
Yes, we have a professional team of engineers who can complete the manufacture of the spool you provide.

How many years have your company made this kind of spool?
We have been making spools more than 20 years.

Are you a trading company or a manufacturer?
we are a manufacturer of spool technology and design.

How long is your delivery time?
we will deliver the order as soon as we receive it.
